Product Description

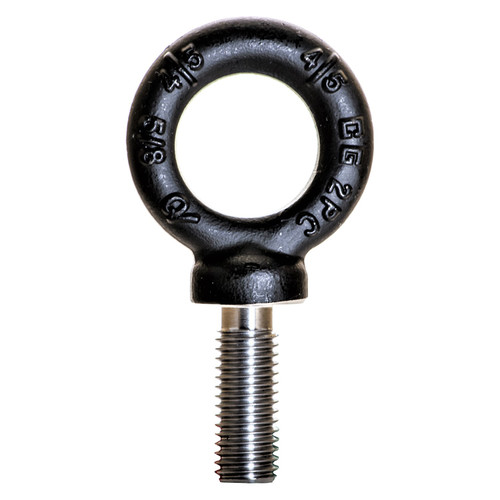

Crosby® G-277 Forged Shoulder Eye Bolts
*1/4" sizes discontinued, some stock on hand, call for availability*
• Forged Steel - Quenched and Tempered.
• Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
• Working Load Limits shown are for in-line pull. For angle loading, see page 200
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
• All Bolts Hot Dip galvanized after threading (UNC).
• Furnished with standard Hot Dip galvanized, heavy hex nuts.
